QSG-15642
QSG-15642 QSG-15642 QSG-15642 QSG-15642 QSG-15642

QSG-15642

Color
Silver RAL9006
White RAL9016
BronzeRAL1036
Rose gold RAL3015
Titanium RAL7032
Silver grey RAL9007

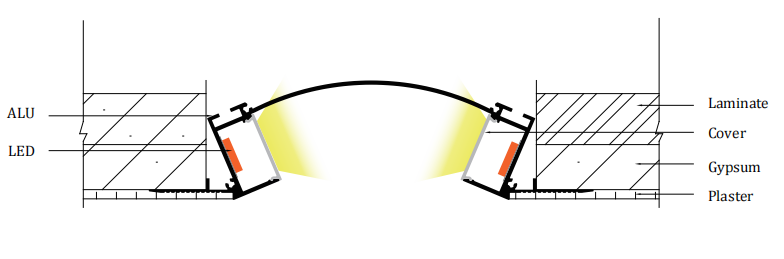

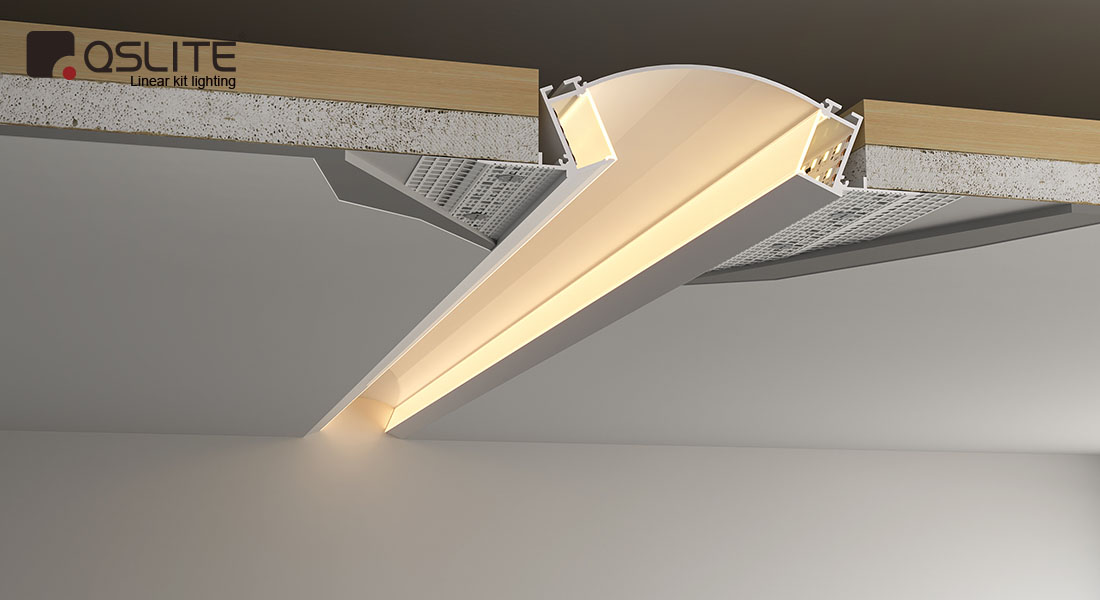

Installation
recessed mounting
recessed mounting-Plastering gypsum board
Product Description

material:6063-T5
craft:heat extrusion
length:1/2/3Mte Can be carve up according to demand
specifications type or composition(Aluminium / led accessorie)


(The US series can be cleverly integrated into all corners of the home, whether it is the ceiling,  loor, ground

or staircase can be seen to emit uniform light, so that the space more layers.)




Power/W 1PCS10
Lumens/lm1000
CCT3500k-6500k
CRI>90
Electrical ClassClass I
Ingress Protection (IP Rating)IP 20
Lifetimehr50,000(hour
Housing MterialAluminum
Impact Resistance (IK Rating)IK06
Glow wire test(℃)750℃
Operating Temp.(℃)-20℃~-45℃
Storae Temp.(℃)20℃~-65℃



Accessories
#
Name
Material
Size
Color
Surface Treatment
QSG-15642 ALU
QSG-15642 ALU
6063-T5

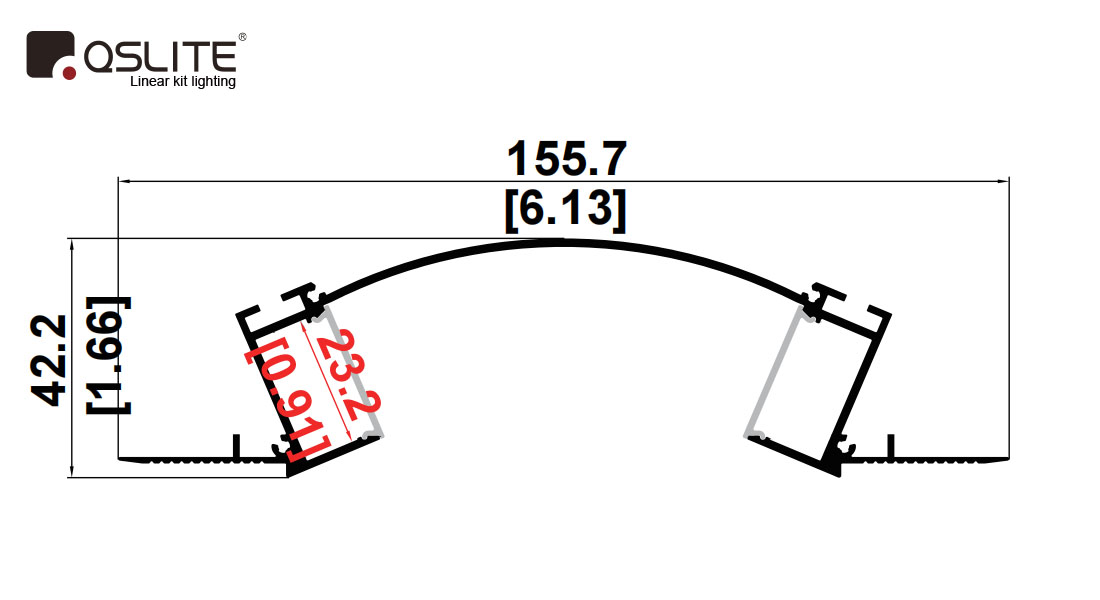

155.7*42.2mm
White
Anodic oxidation
QSG-15642 ALU
QSG-15642 ALU
6063-T5
155.7*42.2mm
Silver
Anodic oxidation
QSG-15642 ALU
QSG-15642 ALU
6063-T5
155.7*42.2mm
Rose gold
Spraying technology‌
QSG-15642 ALU
QSG-15642 ALU
6063-T5
155.7*42.2mm
Bronze-colored
Anodic oxidation
QSG-15642 ALU
QSG-15642 ALU
6063-T5
155.7*42.2mm
Titanium Gold
Anodic oxidation
QSG-15642 ALU
QSG-15642 ALU
6063-T5
155.7*42.2mm
Silver grey
Spraying technology‌

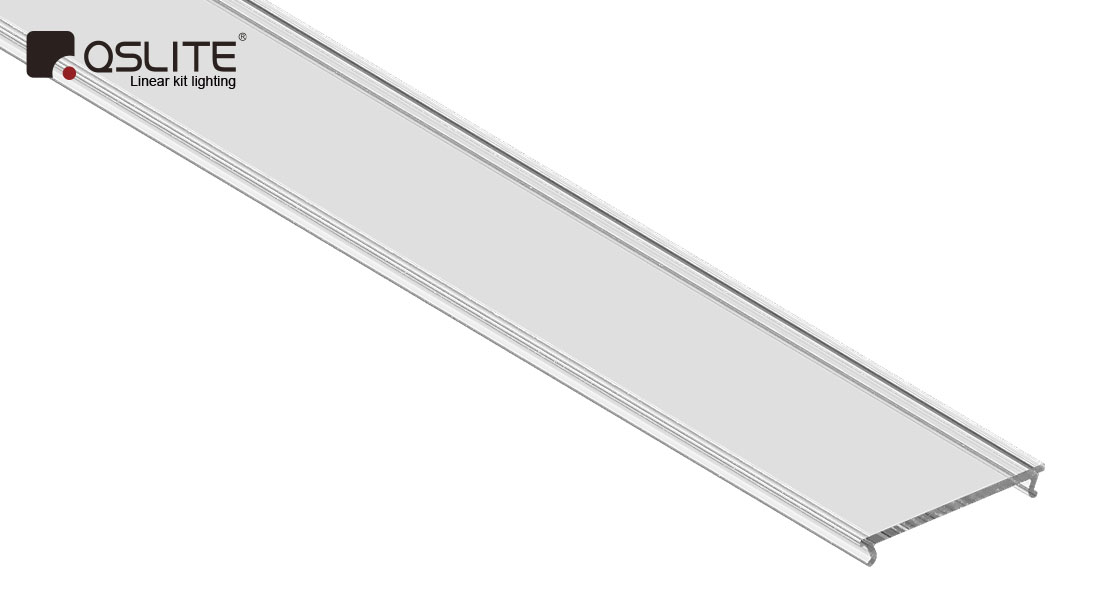

QSG-2525R PC Cover
QSG-2525R PC Cover
PC
1-100mm
Clear
PC
QSG-2525R PC Cover
QSG-2525R PC Cover
PC
1-100mm
Diffuser
PC
QSG-2525R PC Cover
QSG-2525R PC Cover
PC
1-100mm
Opal
PC
QSG-2525R PC Cover
QSG-2525R PC Cover
PC
1-100mm
black
PC
QSG-15642 End-caps
QSG-15642 End-caps
Plastic
113.1*45.8mm
White
Plastic
QSG-15642 End-caps
QSG-15642 End-caps
Plastic
113.1*45.8mm
Silver
Plastic
QSG-15642 End-caps
QSG-15642 End-caps
Plastic
113.1*45.8mm
black
Plastic
