QSG-13235
QSG-13235 QSG-13235 QSG-13235 QSG-13235 QSG-13235

QSG-13235

Color
Silver RAL9006
Black RAL9005
White RAL9016
BronzeRAL1036
Rose gold RAL3015
Titanium RAL7032
Silver grey RAL9007
Installation
Wall

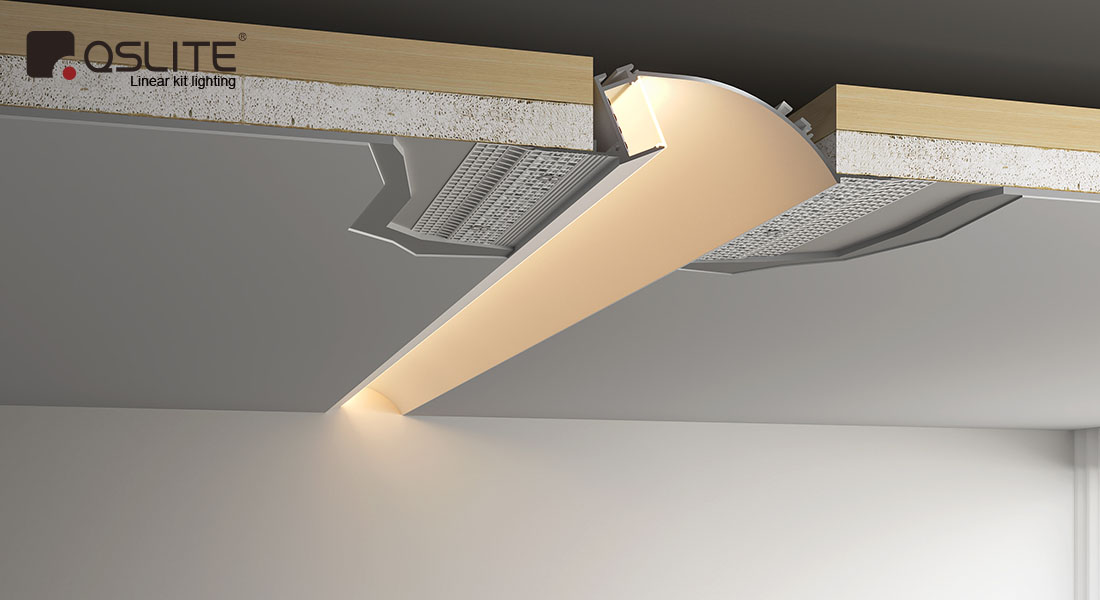

recessed mounting-Anti-glare polarised wall wash
Product Description

material:6063-T5
craft:heat extrusion
length:1/2/3Mte Can be carve up according to demand
specifications type or composition(Aluminium / led accessorie)


(The US series can be cleverly integrated into all corners of the home, whether it is the ceiling,  loor, ground

or staircase can be seen to emit uniform light, so that the space more layers.)






Power/W 1PCS10
Lumens/lm1000
CCT3500k-6500k
CRI>90
Electrical ClassClass I
Ingress Protection (IP Rating)IP 20
Lifetimehr50,000(hour
Housing MterialAluminum
Impact Resistance (IK Rating)IK06
Glow wire test(℃)750℃
Operating Temp.(℃)-20℃~-45℃
Storae Temp.(℃)20℃~-65℃


Accessories
#
Name
Material
Size
Color
Surface Treatment
QSG-13235 ALU
QSG-13235 ALU
6063-T5

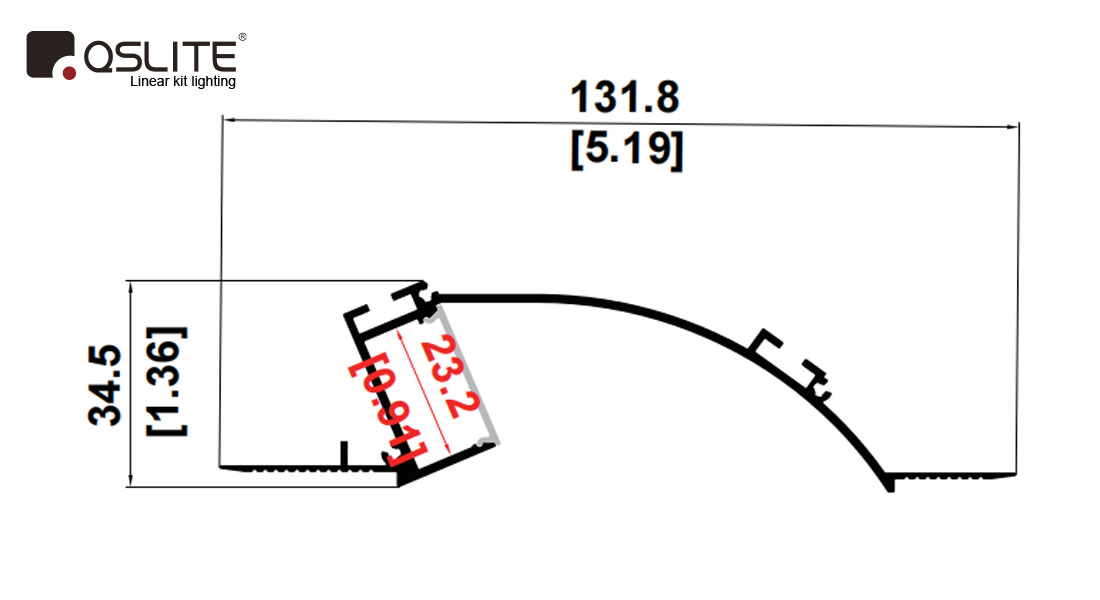

131.8*34.5mm
White
Anodic oxidation
QSG-13235 ALU
QSG-13235 ALU
6063-T5
131.8*34.5mm
Silver
Anodic oxidation
QSG-13235 ALU
QSG-13235 ALU
6063-T5
131.8*34.5mm
Rose gold
Spraying technology‌
QSG-13235 ALU
QSG-13235 ALU
6063-T5
131.8*34.5mm
Titanium Gold
Spraying technology‌
QSG-13235 ALU
QSG-13235 ALU
6063-T5
131.8*34.5mm
Silver gray
Spraying technology‌
QSG-13235 ALU
QSG-13235 ALU
6063-T5
131.8*34.5mm
Black
Anodic oxidation

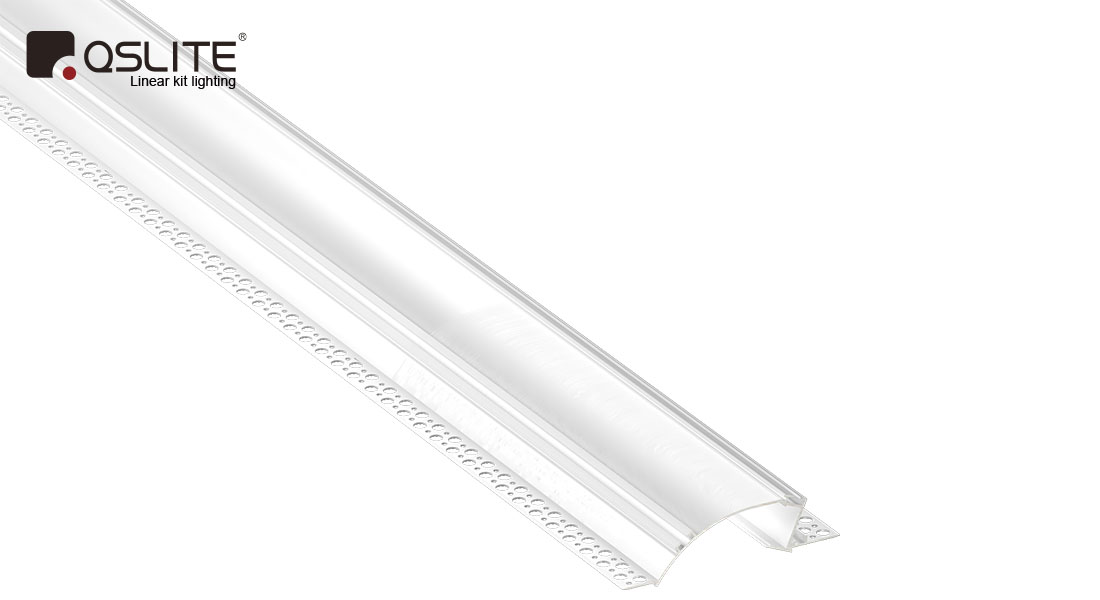

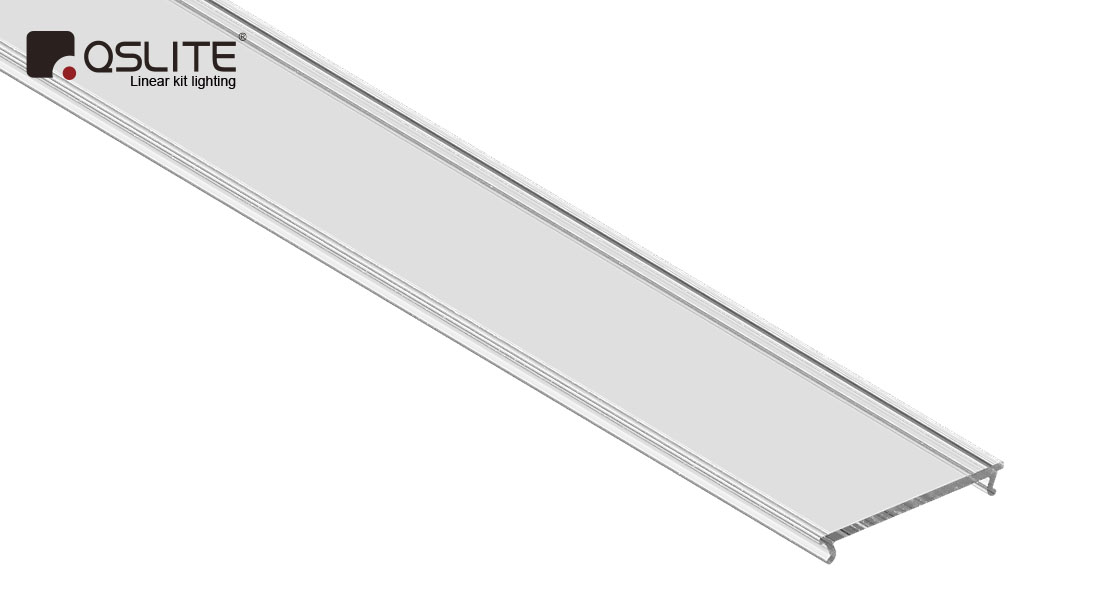

QSG-2525R PC Cover
QSG-2525R PC Cover
PC
1-100mm
Clear
PC
QSG-2525R PC Cover
QSG-2525R PC Cover
PC
1-100mm
Opal
PC
QSG-2525R PC Cover
QSG-2525R PC Cover
PC
1-100mm
Diffuser
PC
QSG-2525R PC Cover
QSG-2525R PC Cover
PC
1-100mm
black
PC
QSG-13235 End-caps
QSG-13235 End-caps
Plastic
91.3*35.3
White
Plastic
QSG-13235 End-caps
QSG-13235 End-caps
Plastic
91.3*35.3mm
Silver
Plastic
QSG-13235 End-caps
QSG-13235 End-caps
Plastic
91.3*35.3mm
black
Plastic
