QSG-2782
QSG-2782 QSG-2782 QSG-2782 QSG-2782 QSG-2782

QSG-2782

Color
Silver RAL9006
Black RAL9005
White RAL9016
BronzeRAL1036
Rose gold RAL3015
Titanium RAL7032
Silver grey RAL9007

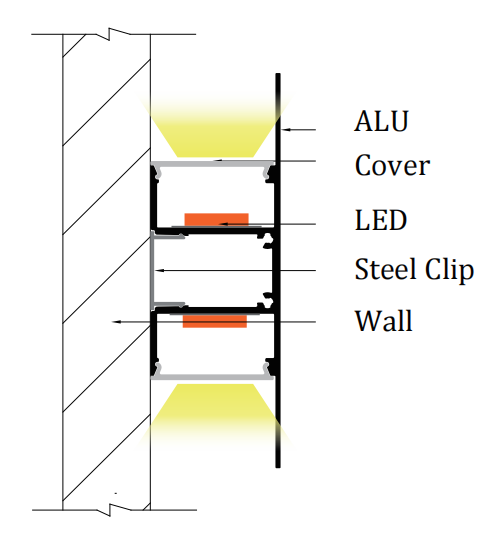

Installation
recessed mounting

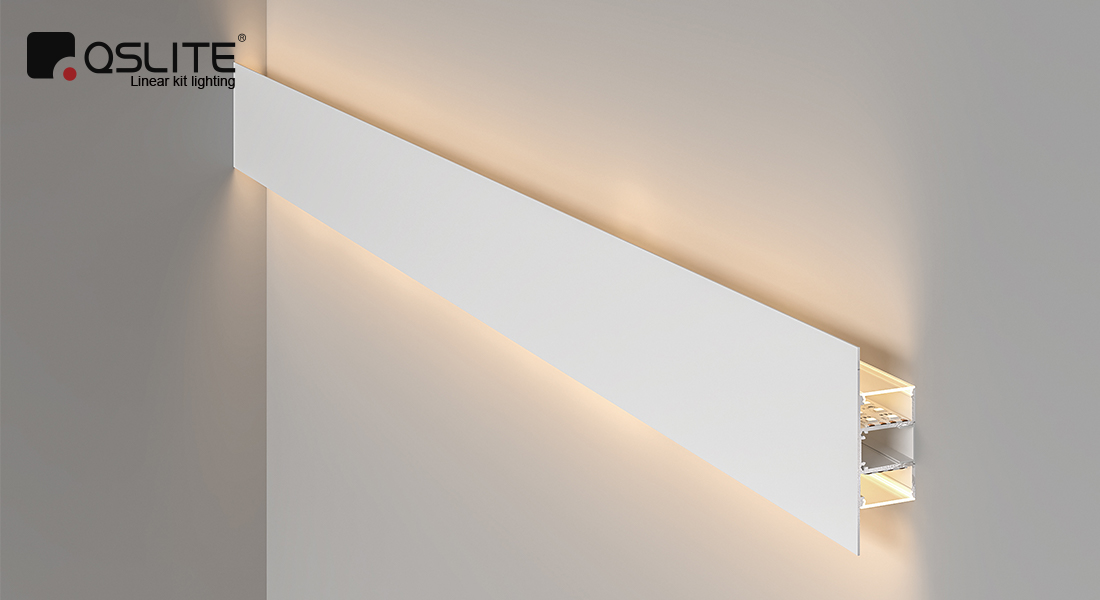

Wall mounting-Up and down light
Product Description

material:6063-T5
craft:heat extrusion
length:1/2/3Mte Can be carve up according to demand
specifications type or composition(Aluminium / led accessorie)


(The US series can be cleverly integrated into all corners of the home, whether it is the ceiling,  loor, ground or staircase can be seen to emit uniform light, so that the space more layers.)



Power/W 1PCS10
Lumens/lm1000
CCT3500k-6500k
CRI>90
Electrical ClassClass I
Ingress Protection (IP Rating)IP 20
Lifetimehr50,000(hour
Housing MterialAluminum
Impact Resistance (IK Rating)IK06
Glow wire test(℃)750℃
Operating Temp.(℃)-20℃~-45℃
Storae Temp.(℃)20℃~-65℃




Accessories
#
Name
Material
Size
Color
Surface Treatment
QSG-2782 ALU
QSG-2782 ALU
6063-T5

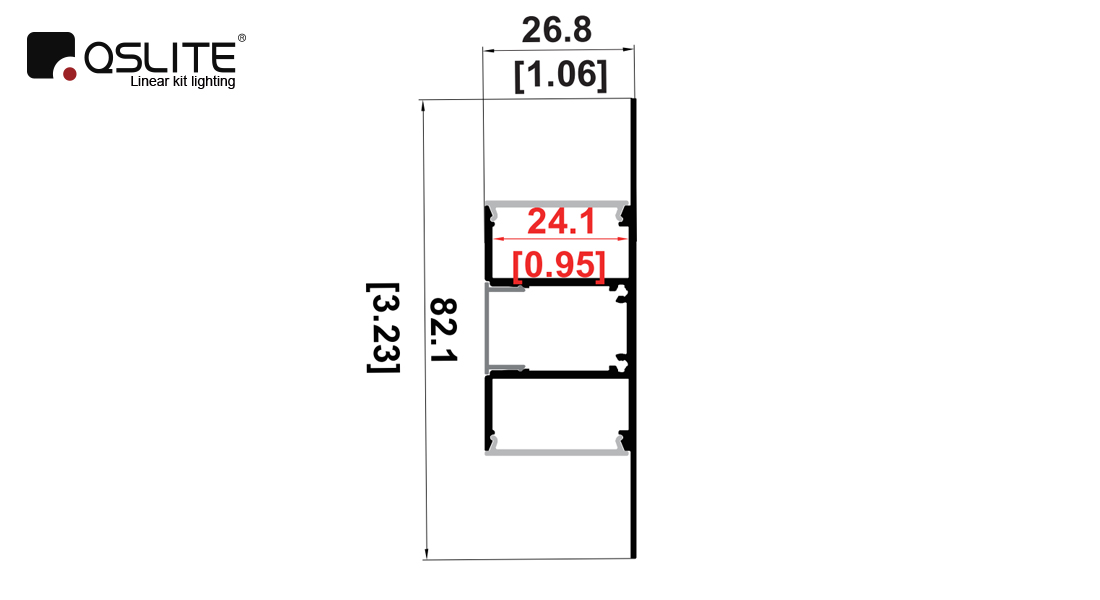

26.8*82.1mm
White
Anodic oxidation
QSG-2782 ALU
QSG-2782 ALU
6063-T5
26.8*82.1mm
Silver
Anodic oxidation
QSG-2782 ALU
QSG-2782 ALU
6063-T5
26.8*82.1mm
Rose gold
Spraying technology‌
QSG-2782 ALU
QSG-2782 ALU
6063-T5
26.8*82.1mm
Bronze-colored
Anodic oxidation
QSG-2782 ALU
QSG-2782 ALU
6063-T5
26.8*82.1mm
Titanium Gold
Anodic oxidation
QSG-2782 ALU
QSG-2782 ALU
6063-T5
26.8*82.1mm
Silver gray
Spraying technology‌
QSG-2782 ALU
QSG-2782 ALU
6063-T5
26.8*82.1mm
Black
Anodic oxidation

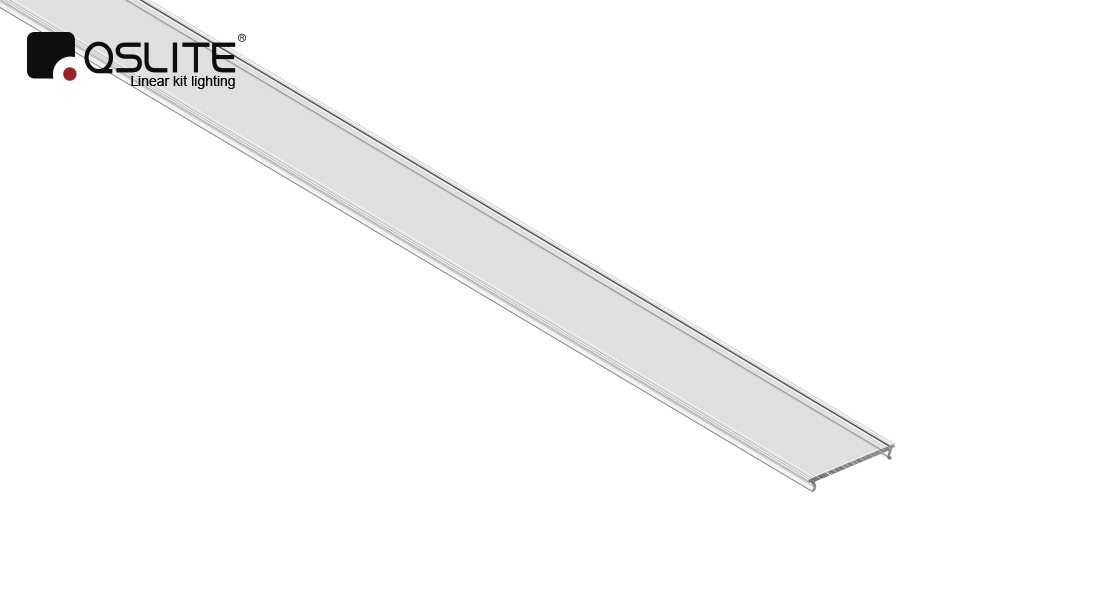

QSG-2525R PC Cover
QSG-2525R PC Cover
PC
1-100m
Clear
PC
QSG-2525R PC Cover
QSG-2525R PC Cover
PC
1-100m
Opal
PC
QSG-2525R PC Cover
QSG-2525R PC Cover
PC
1-100m
Diffuser
PC
QSG-2525R PC Cover
QSG-2525R PC Cover
PC
1-100m
Black
PC
End caps
End caps
Plastic
26.8*45.5mm
White
Plastic
End caps
End caps
Plastic
26.8*45.5mm
Silver
Plastic
End caps
End caps
Plastic
26.8*45.5mm
Black
Plastic
