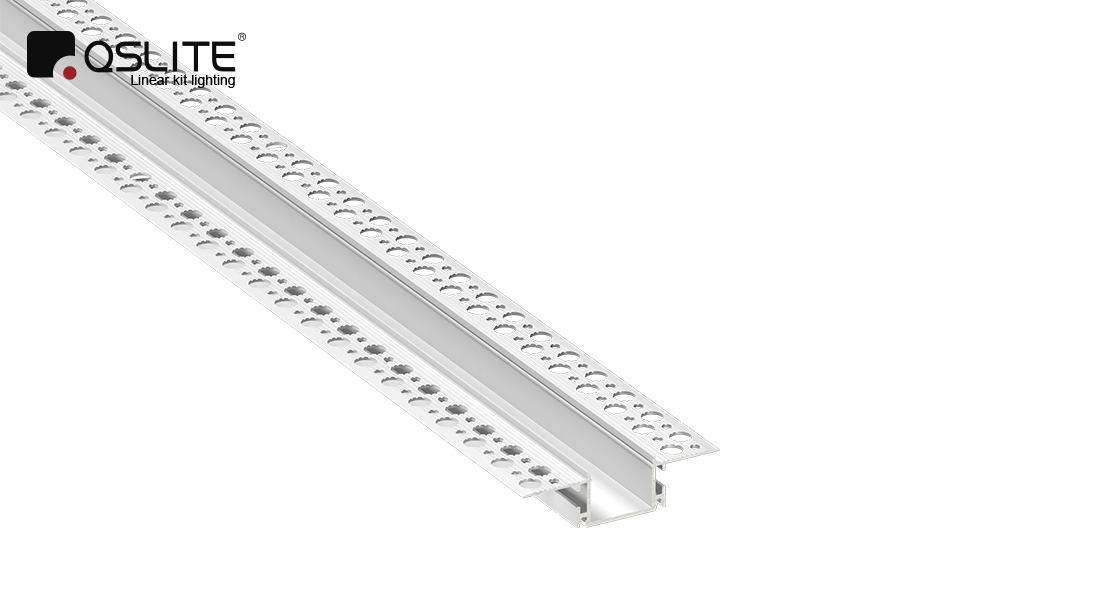

QSG-7420
QSG-7420 QSG-7420 QSG-7420 QSG-7420 QSG-7420

QSG-7420

Color
Silver RAL9006
Black RAL9005
White RAL9016
BronzeRAL1036
Rose gold RAL3015
Titanium RAL7032
Silver grey RAL9007

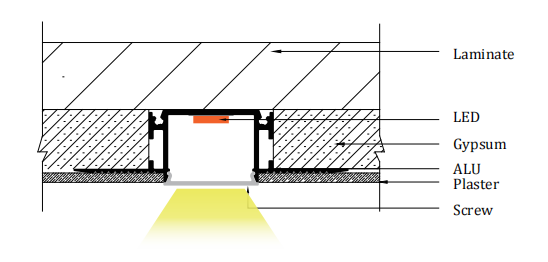

Installation
recessed mounting
recessed mounting-Plastering gypsum board
Product Description

material:6063-T5
craft:heat extrusion
length:1/2/3Mte Can be carve up according to demand
specifications type or composition(Aluminium / led accessorie)

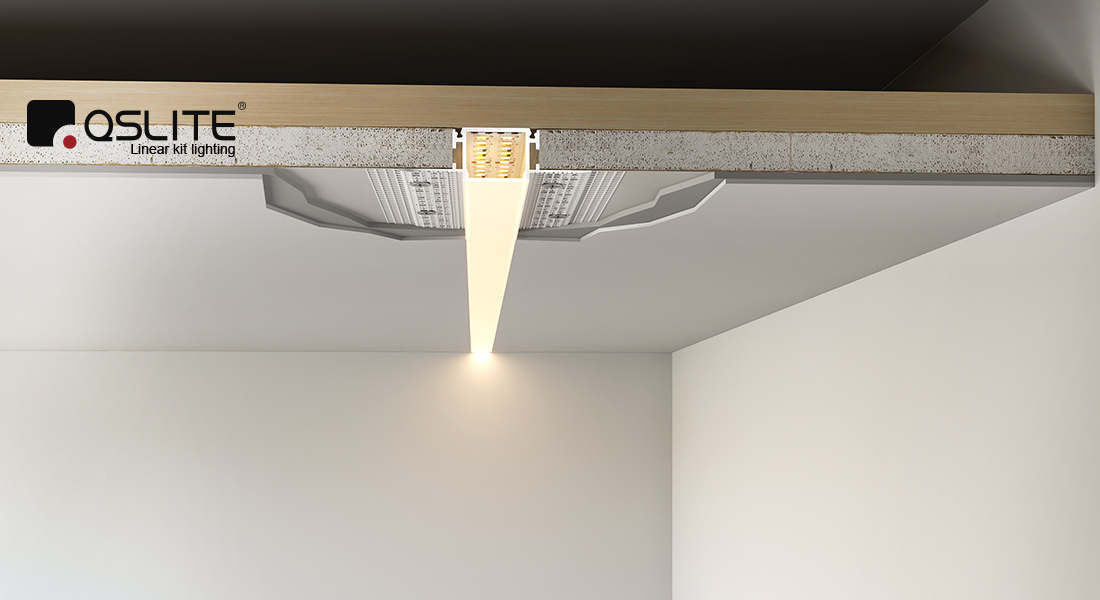

(The US series can be cleverly integrated into all corners of the home, whether it is the ceiling,  loor, ground

or staircase can be seen to emit uniform light, so that the space more layers.)




Power/W 1PCS10
Lumens/lm1000
CCT3500k-6500k
CRI>90
Electrical ClassClass I
Ingress Protection (IP Rating)IP 20
Lifetimehr50,000(hour
Housing MterialAluminum
Impact Resistance (IK Rating)IK06
Glow wire test(℃)750℃
Operating Temp.(℃)-20℃~-45℃
Storae Temp.(℃)20℃~-65℃




Accessories
#
Name
Material
Size
Color
Surface Treatment
QSG-7420 ALU
QSG-7420 ALU
6063-T5

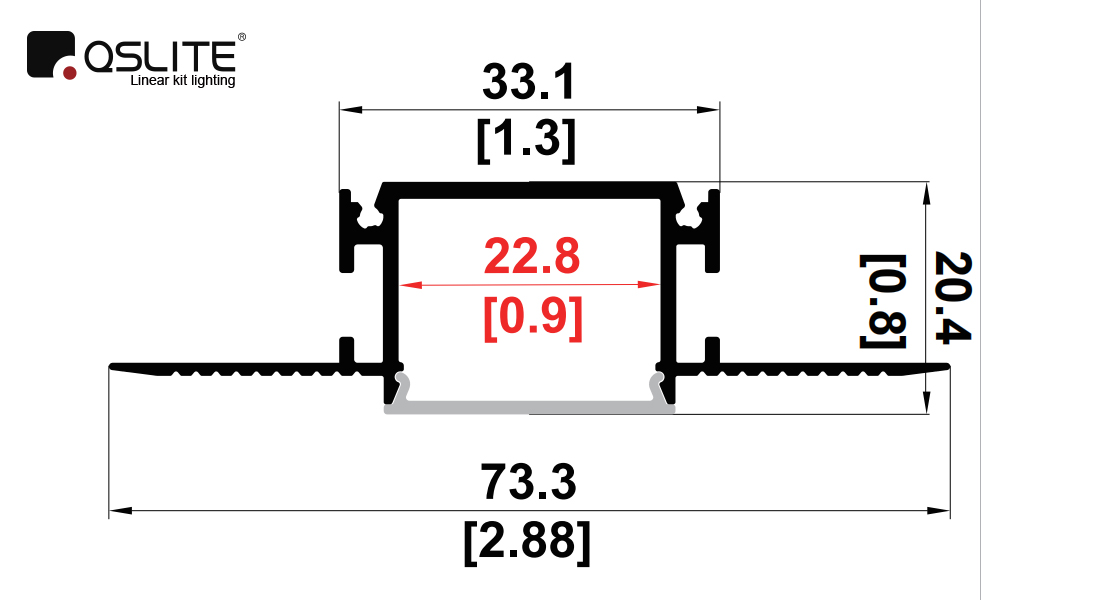

73.3*20.4mm
White
Anodic oxidation
QSG-7420 ALU
QSG-7420 ALU
6063-T5
73.3*20.4mm
Silver
Anodic oxidation
QSG-7420 ALU
QSG-7420 ALU
6063-T5
73.3*20.4mm
Bronze-colored
Anodic oxidation
QSG-7420 ALU
QSG-7420 ALU
6063-T5
73.3*20.4mm
Rose gold
Spraying technology‌
QSG-7420 ALU
QSG-7420 ALU
6063-T5
73.3*20.4mm
Titanium Gold
Spraying technology‌
QSG-7420 ALU
QSG-7420 ALU
6063-T5
73.3*20.4mm
Grey Silver
Spraying technology‌
QSG-7420 ALU
QSG-7420 ALU
6063-T5
73.3*20.4mm
Black
Anodic oxidation

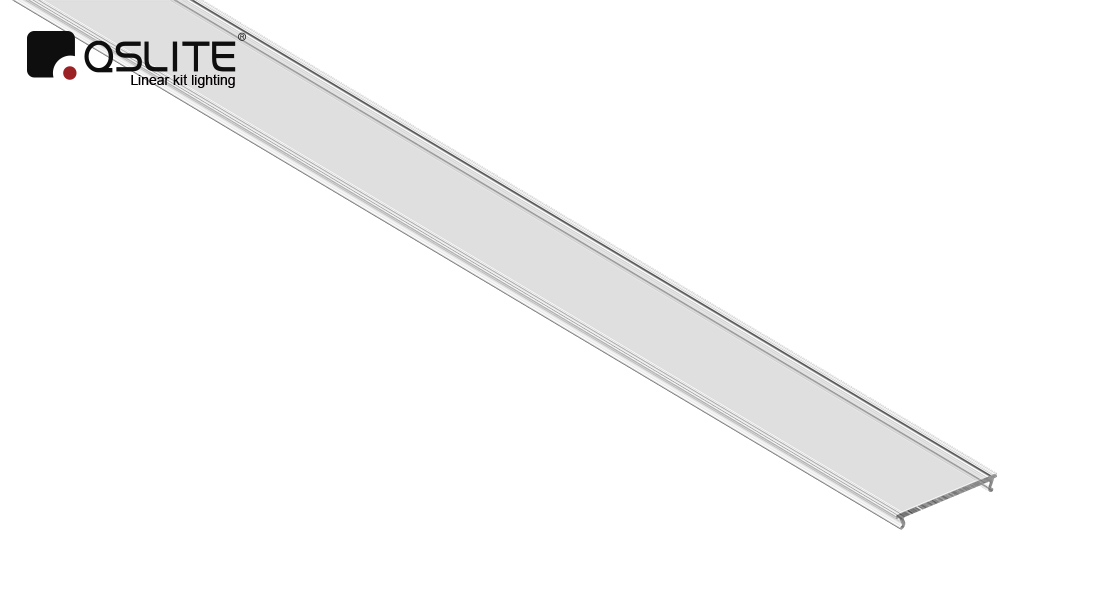

QSG-2525R PC Cover
QSG-2525R PC Cover
PC
1-100m
Clear
PC
QSG-2525R PC Cover
QSG-2525R PC Cover
PC
1-100m
Opal
PC
QSG-2525R PC Cover
QSG-2525R PC Cover
PC
1-100m
Diffuser
PC
QSG-2525R PC Cover
QSG-2525R PC Cover
PC
1-100m
Black
PC

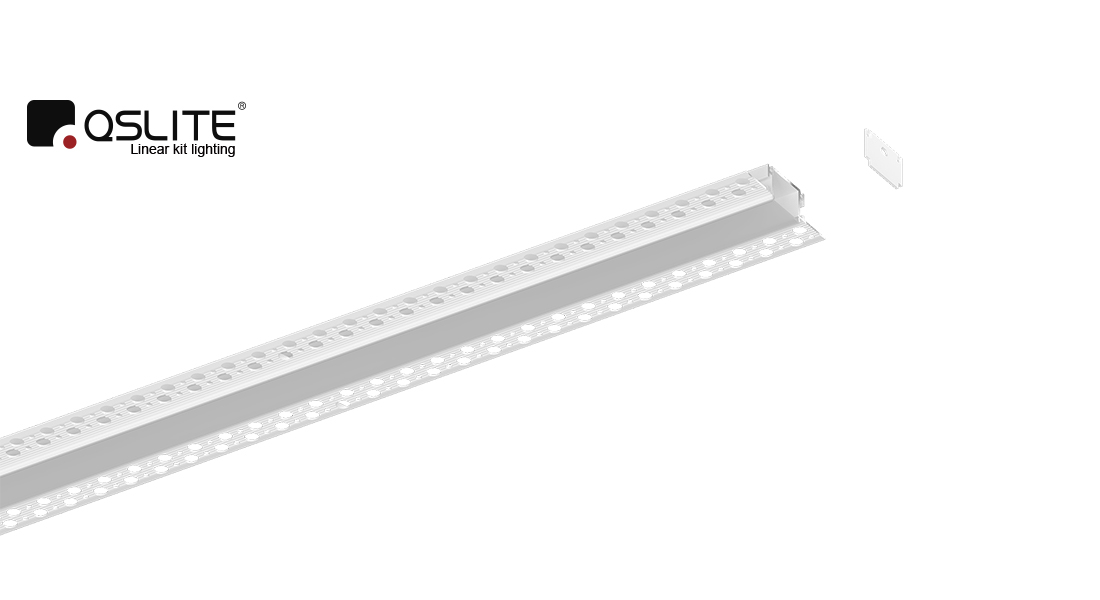

End caps
End caps
Plastic
33.1*20.4mm
White
Plastic
End caps
End caps
Plastic
33.1*20.4mm
Silver
Plastic
End caps
End caps
Plastic
33.1*20.4mm
Black
Plastic
