QSG-2483
QSG-2483 QSG-2483 QSG-2483 QSG-2483 QSG-2483

QSG-2483

Color
Silver RAL9006
Black RAL9005
White RAL9016
BronzeRAL1036
Rose gold RAL3015
Titanium RAL7032
Installation
recessed mounting

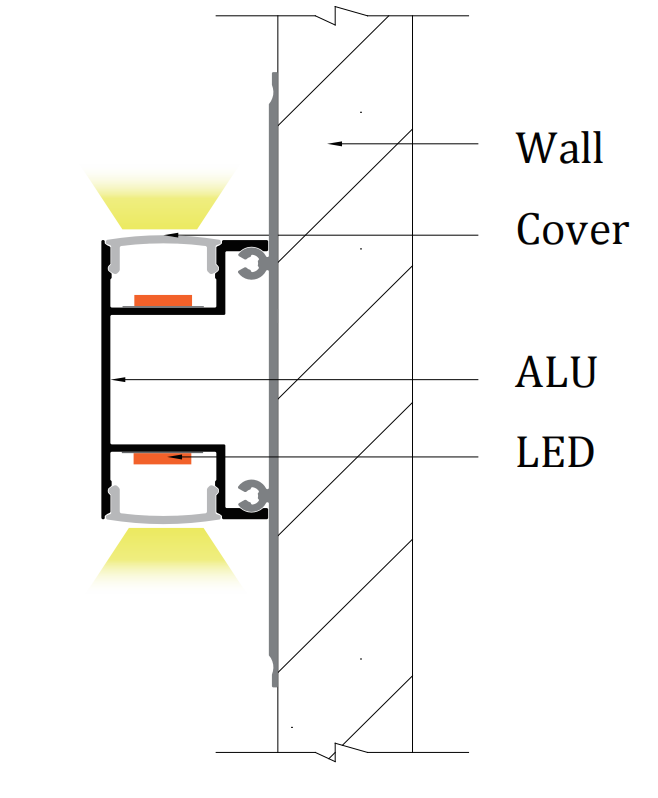

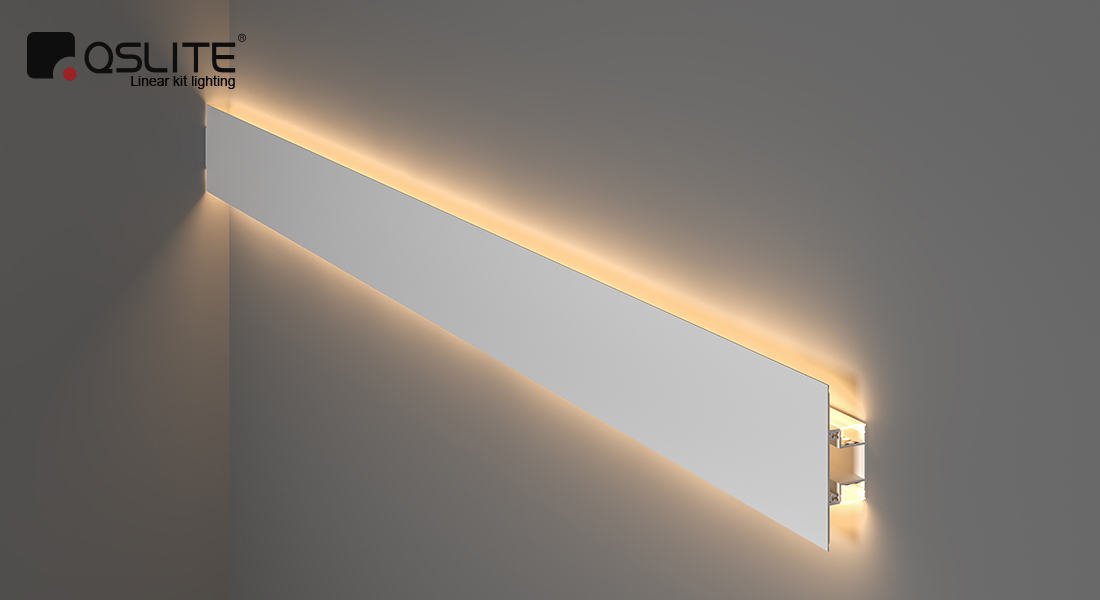

Wall mounting-Up and down light
Product Description

material:6063-T5
craft:heat extrusion
length:1/2/3Mte Can be carve up according to demand specifications type or composition(Aluminium / led accessorie)


(The US series can be cleverly integrated into all corners of the home, whether it is the ceiling,  loor, ground or staircase can be seen to emit uniform light, so that the space more layers.)




Power/W 1PCS10
Lumens/lm1000
CCT3500k-6500k
CRI>90
Electrical ClassClass I
Ingress Protection (IP Rating)IP 20
Lifetimehr50,000(hour
Housing MterialAluminum
Impact Resistance (IK Rating)IK06
Glow wire test(℃)750℃
Operating Temp.(℃)20℃~-45℃
Storae Temp.(℃)20℃~-65℃








Accessories
#
Name
Material
Size
Color
Surface Treatment

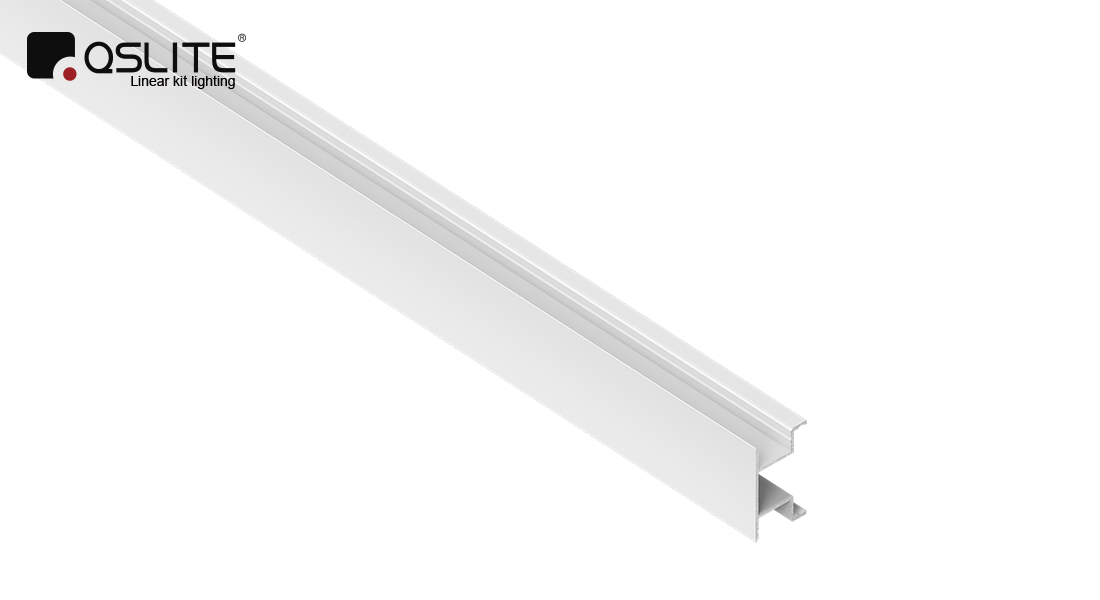

QSG-2483 ALU
QSG-2483 ALU
6063-T5

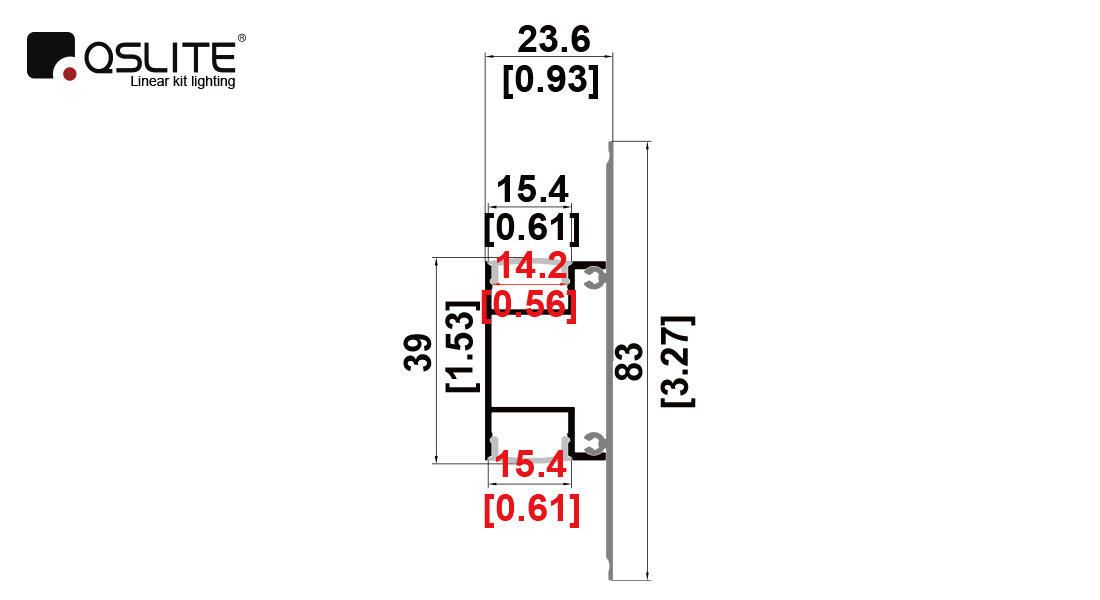

23.6*83mm
White
Spraying technology‌
QSG-2483 ALU
QSG-2483 ALU
6063-T5
23.6*83mm
Silver
Anodic oxidation
QSG-2483 ALU
QSG-2483 ALU
6063-T5
23.6*83mm
Rose gold
Spraying technology‌
QSG-2483 ALU
QSG-2483 ALU
6063-T5
23.6*83mm
Bronze-colored
Anodic oxidation
QSG-2483 ALU
QSG-2483 ALU
6063-T5
23.6*83mm
Titanium Gold
Anodic oxidation
QSG-2483 ALU
QSG-2483 ALU
6063-T5
23.6*83mm
Black
Anodic oxidation

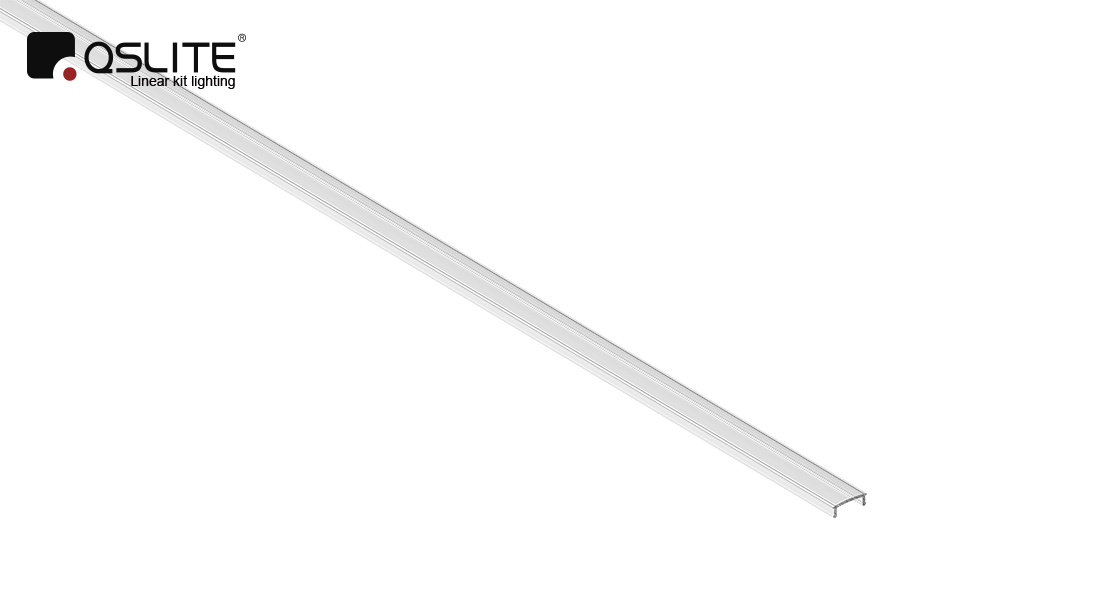

QSG-1707D PC Cover
QSG-1707D PC Cover
PC
1-100m
Opal
PC
QSG-1707D PC Cover
QSG-1707D PC Cover
PC
1-100m
Diffuser
PC
QSG-1707D PC Cover
QSG-1707D PC Cover
PC
1-100m
Clear
PC
QSG-1707D PC Cover
QSG-1707D PC Cover
PC
1-100m
Black
PC

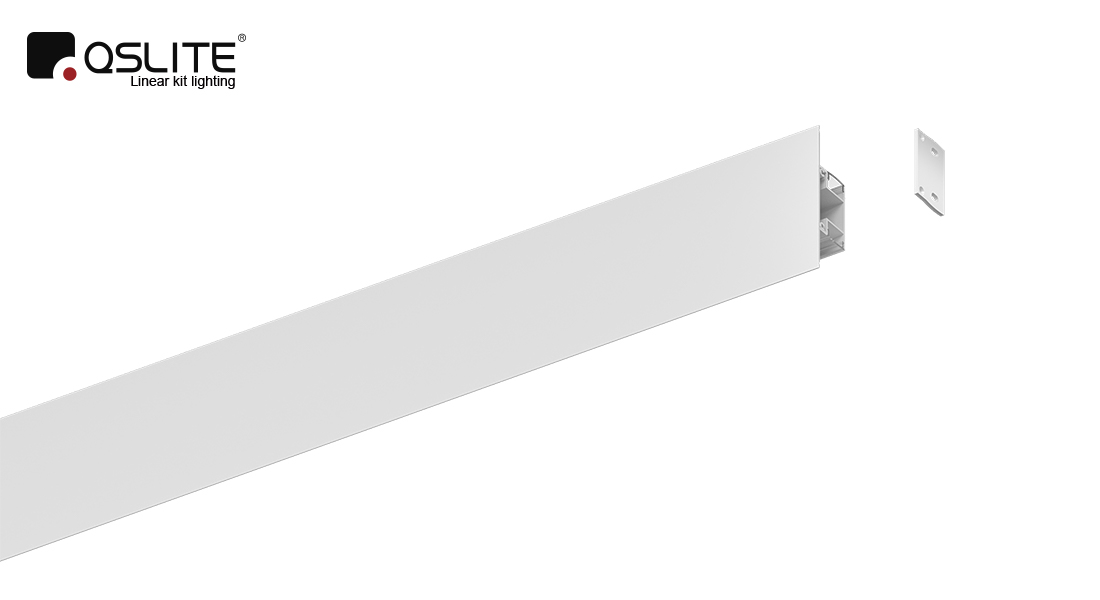

End-caps
End-caps
Plastic
23.6*39mm
White
Plastic
End-caps
End-caps
Plastic
23.6*39mm
Silver
Plastic
End-caps
End-caps
Plastic
23.6*39mm
Black
Plastic
QSG-2483 Inserts
QSG-2483 Inserts
6063-T5
5.3*83mm
White
Anodic oxidation
QSG-2483 Inserts
QSG-2483 Inserts
6063-T5
5.3*83mm
Silver
Anodic oxidation
QSG-2483 Inserts
QSG-2483 Inserts
6063-T5
5.3*83mm
Black
Anodic oxidation
