QSG-8080C
QSG-8080C QSG-8080C QSG-8080C QSG-8080C QSG-8080C

QSG-8080C

Color
Silver RAL9006
Black RAL9005
White RAL9016
BronzeRAL1036
Rose gold RAL3015
Titanium RAL7032
Silver grey RAL9007

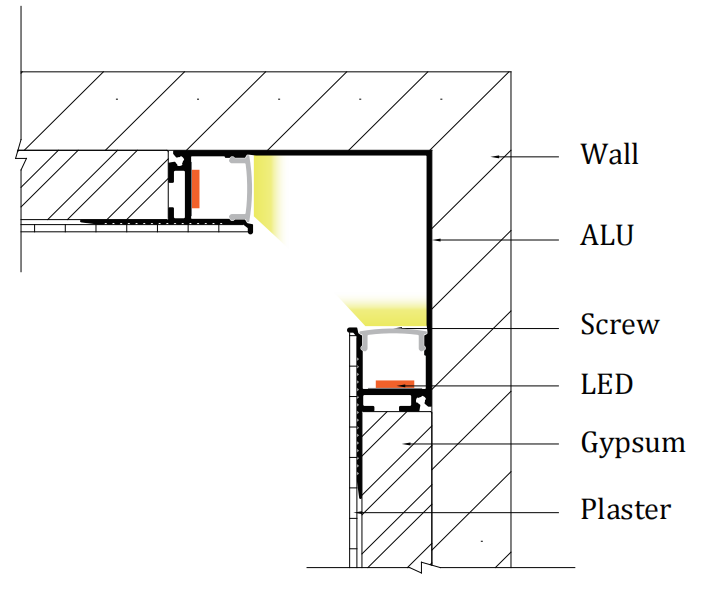

Installation
recessed mounting
recessed mounting-Outside Corner
Product Description

material:6063-T5
craft:heat extrusion
length:1/2/3Mte Can be carve up according to demand
specifications type or composition(Aluminium / led accessorie)


(The US series can be cleverly integrated into all corners of the home, whether it is the ceiling,  loor, ground

or staircase can be seen to emit uniform light, so that the space more layers.)




Power/W 1PCS

10
Lumens/lm1000
CCT3500k-6500k
CRI>90
Electrical ClassClass I
Ingress Protection (IP Rating)IP 20
Lifetimehr50,000(hour
Housing MterialAluminum
Impact Resistance (IK Rating)IK06
Glow wire test(℃)750℃
Operating Temp.(℃)-20℃~-45℃
Storae Temp.(℃)20℃~-65℃














Accessories
#
Name
Material
Size
Color
Surface Treatment
QSG-8080C ALU
QSG-8080C ALU
6063-T5
80*80mm
Silver
Anodic oxidation
QSG-8080C ALU
QSG-8080C ALU
6063-T5
80*80mm
White
spraying technology‌
QSG-8080C ALU
QSG-8080C ALU
6063-T5
80*80mm
Rose gold
spraying technology‌
QSG-8080C ALU
QSG-8080C ALU
6063-T5
80*80mm
Titanium Gold
Spraying technology‌
QSG-8080C ALU
QSG-8080C ALU
6063-T5
80*80mm
Bronze-colored
Anodic oxidation
QSG-8080C ALU
QSG-8080C ALU
6063-T5
80*80mm
Grey Silver
spraying technology‌
QSG-8080C ALU
QSG-8080C ALU
6063-T5
80*80mm
black
Anodic oxidation

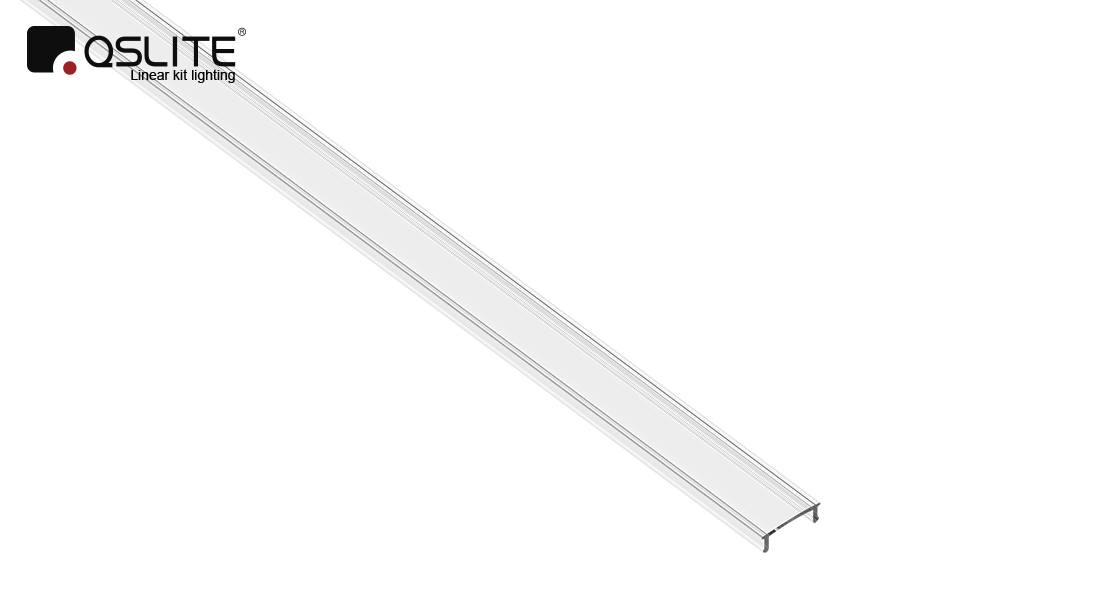

QSG-1707D PC Cover
QSG-1707D PC Cover
PC
1-100m
White
PC
QSG-1707D PC Cover
QSG-1707D PC Cover
PC
1-100m
Black
PC
QSG-1707D PC Cover
QSG-1707D PC Cover
PC
1-100m
Diffuser
PC
QSG-1707D PC Cover
QSG-1707D PC Cover
PC
1-100m
Clear
PC
End-caps
End-caps
Plastic
19.3*19.3mm
White
Plastic
End-caps
End-caps
Plastic
19.3*19.3mm
Silver
Plastic
End-caps
End-caps
Plastic
19.3*19.3mm
black
Plastic
