QSG-1939
QSG-1939 QSG-1939 QSG-1939 QSG-1939 QSG-1939

QSG-1939

Color
Silver RAL9006
Black RAL9005
White RAL9016
BronzeRAL1036
Rose gold RAL3015
Titanium RAL7032
Silver grey RAL9007

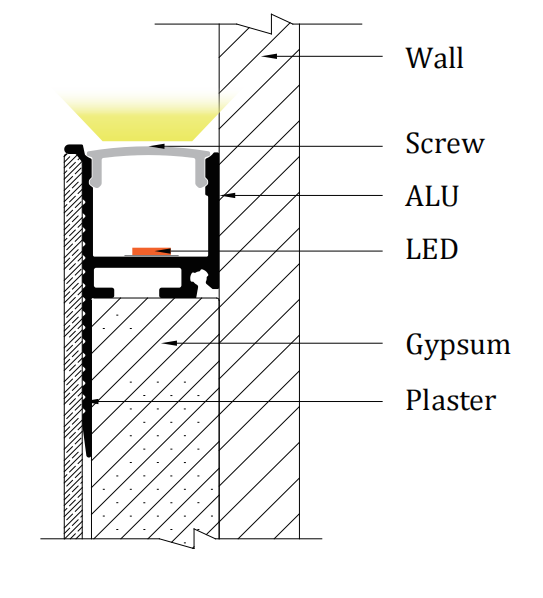

Installation
surface mounting

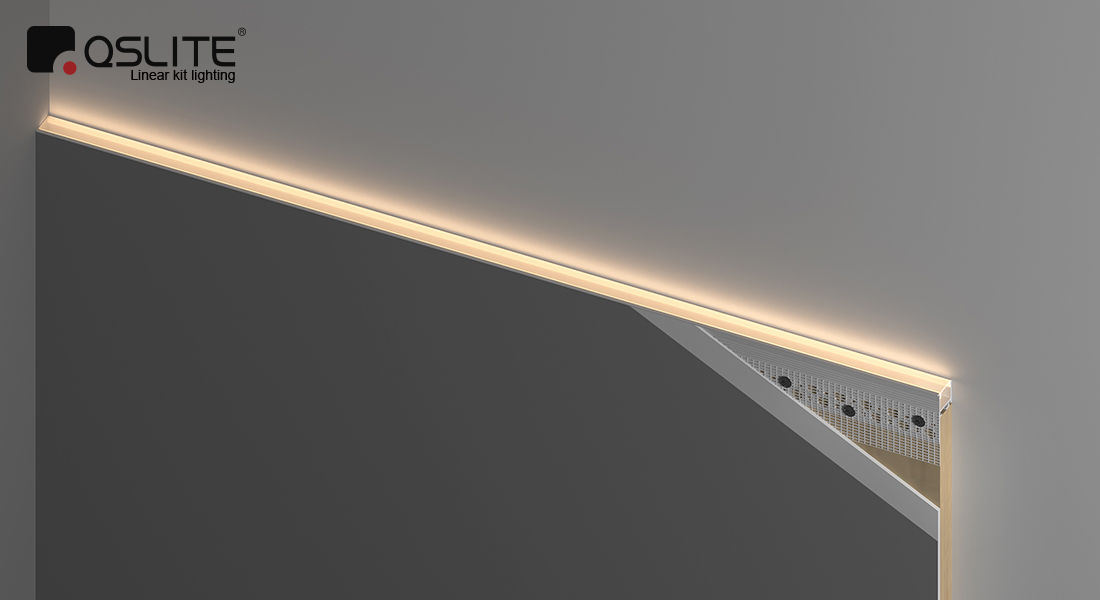

Wall mounting-Upward light
Product Description
Product Description

material:6063-T5
craft:heat extrusion
length:1/2/3Mte Can be carve up according to demand specifications type or composition(Aluminium / led accessorie)


(The US series can be cleverly integrated into all corners of the home, whether it is the ceiling,  loor, ground

or staircase can be seen to emit uniform light, so that the space more layers.)



Power/W 1PCS10
Lumens/lm1000
CCT3500k-6500k
CRI>90
Electrical ClassClass I
Ingress Protection (IP Rating)IP 20
Lifetime(hr)50,000(hour
Housing MterialAluminum
Impact Resistance (IK Rating)IK06
Glow wire test(℃)750℃
Operating Temp.(℃)-20℃~-45℃
Storae Temp.(℃)20℃~-65℃


Accessories
#
Name
Material
Size
Color
Surface Treatment
QSG-1939 ALU
QSG-1939 ALU
6063-T5

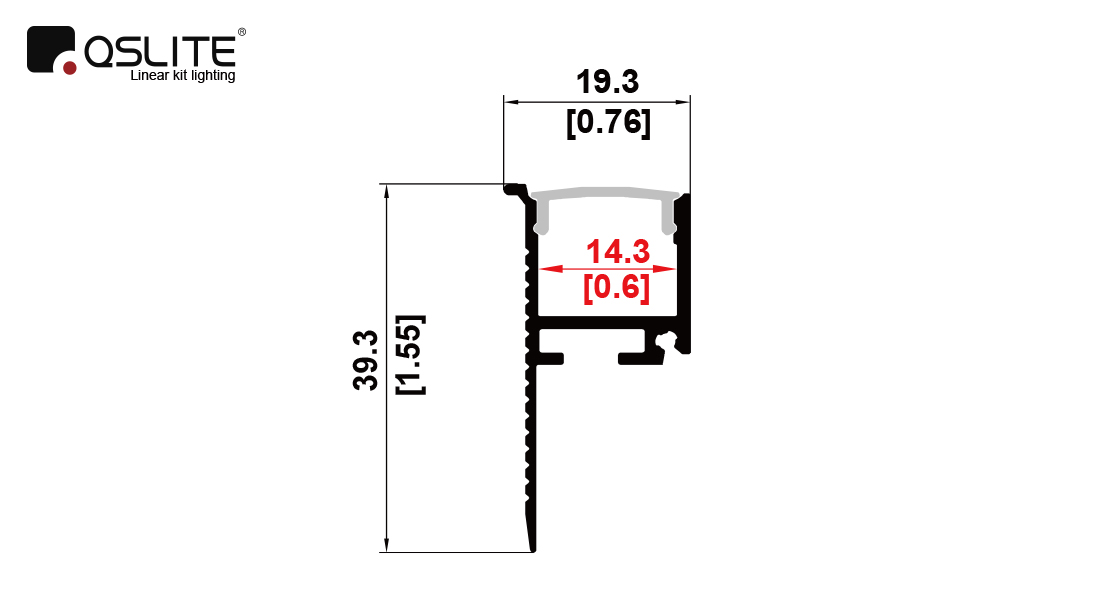

19.3*39.3mm
Rose gold
Anodic oxidation
QSG-1939 ALU
QSG-1939 ALU
6063-T5
19.3*39.3mm
White
Baking paint White
QSG-1939 ALU
QSG-1939 ALU
6063-T5
19.3*39.3mm
Black
Oxidation treatment
QSG-1939 ALU
QSG-1939 ALU
6063-T5
19.3*39.3mm
Silver
Oxidation treatment
QSG-1939 ALU
QSG-1939 ALU
6063-T5
19.3*39.3mm
silver gray
Anodic oxidation
QSG-1939 ALU
QSG-1939 ALU
6063-T5
19.3*39.3mm
Bronze
Anodic oxidation
QSG-1939 ALU
QSG-1939 ALU
6063-T5
19.3*39.3mm
Titanium Gold
Anodic oxidation

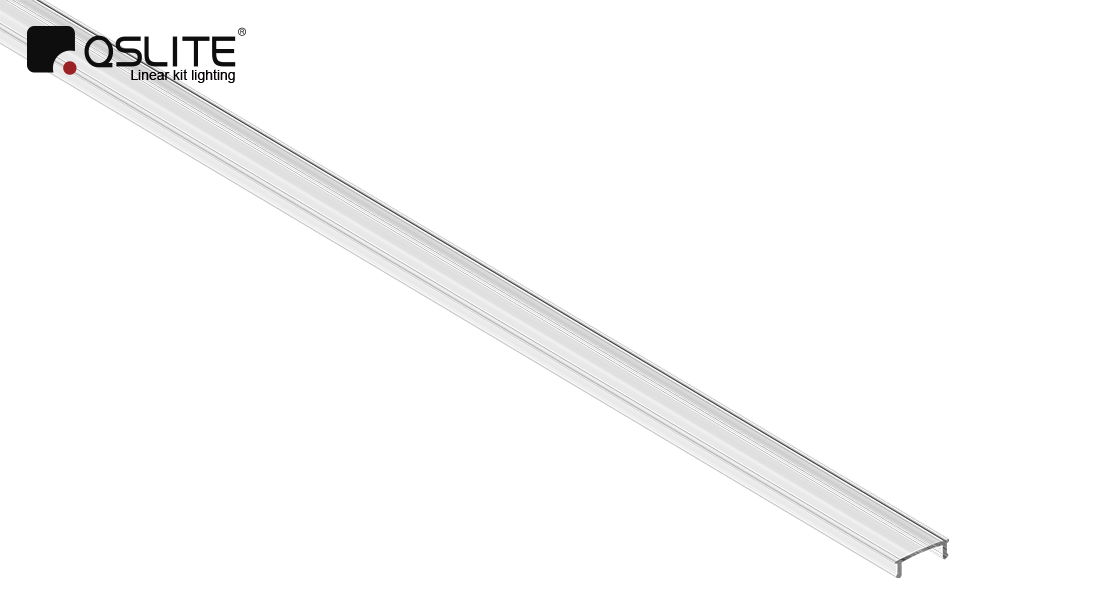

QSG-1707D PC Cover
QSG-1707D PC Cover
PC
1-100m
White
PC
QSG-1707D PC Cover
QSG-1707D PC Cover
PC
1-100m
Black
PC
QSG-1707D PC Cover
QSG-1707D PC Cover
PC
1-100m
Diffuser
PC
QSG-1707D PC Cover
QSG-1707D PC Cover
PC
1-100m
Clear
PC
End-caps
End-caps
Plastic
19.3*19.3mm
Silver
Plastic
End-caps
End-caps
Plastic
19.3*19.3mm
White
Plastic
End-caps
End-caps
Plastic
19.3*19.3mm
Black
Plastic
