QSG-14019
QSG-14019 QSG-14019 QSG-14019 QSG-14019 QSG-14019

QSG-14019

Color

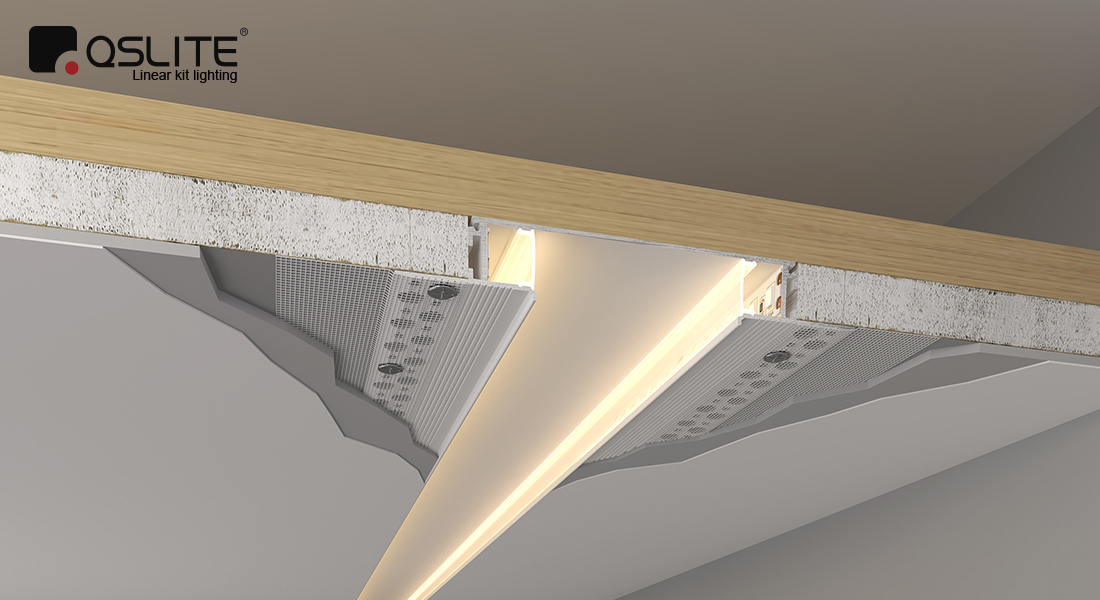

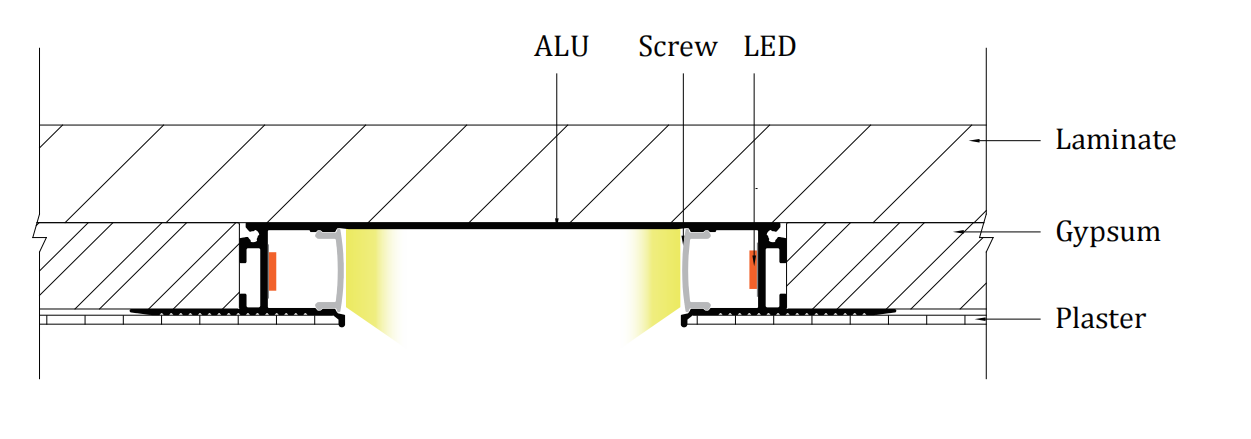

Installation
Product Description

material:6063-T5
craft:heat extrusion
length:1/2/3Mte Can be carve up according to demand
specifications type or composition(Aluminium / led accessorie)


(The US series can be cleverly integrated into all corners of the home, whether it is the ceiling,  loor, ground

or staircase can be seen to emit uniform light, so that the space more layers.)



Power/W 1PCS10
Lumens/lm1000
CCT3500k-6500k
CRI>90
Electrical ClassClass I
Ingress Protection (IP Rating)IP 20
Lifetimehr50,000(hour
Housing MterialAluminum
Impact Resistance (IK Rating)IK06
Glow wire test(℃)750℃
Operating Temp.(℃)-20℃~-45℃
Storae Temp.(℃)20℃~-65℃


Accessories
#
Name
Material
Size
Color
Surface Treatment
QSG-14019 ALU
QSG-14019 ALU
6063-T5

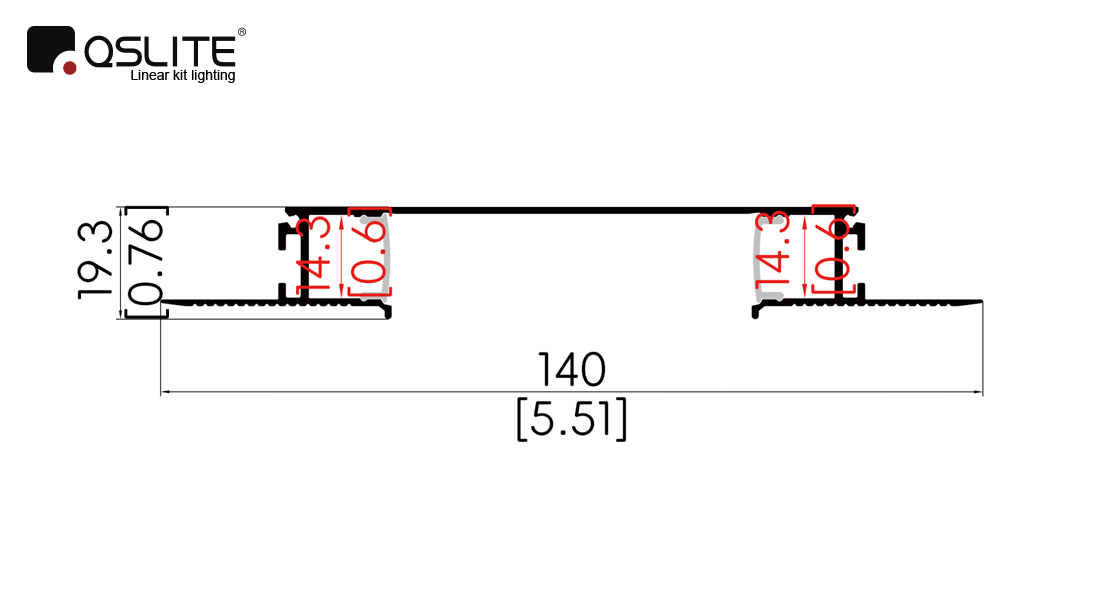

140*19.3mm
Silver
Oxidation treatment
QSG-14019 ALU
QSG-14019 ALU
6063-T5
140*19.3mm
Black
Oxidation treatment
QSG-14019 ALU
QSG-14019 ALU
6063-T5
140*19.3mm
White
Baking paint White

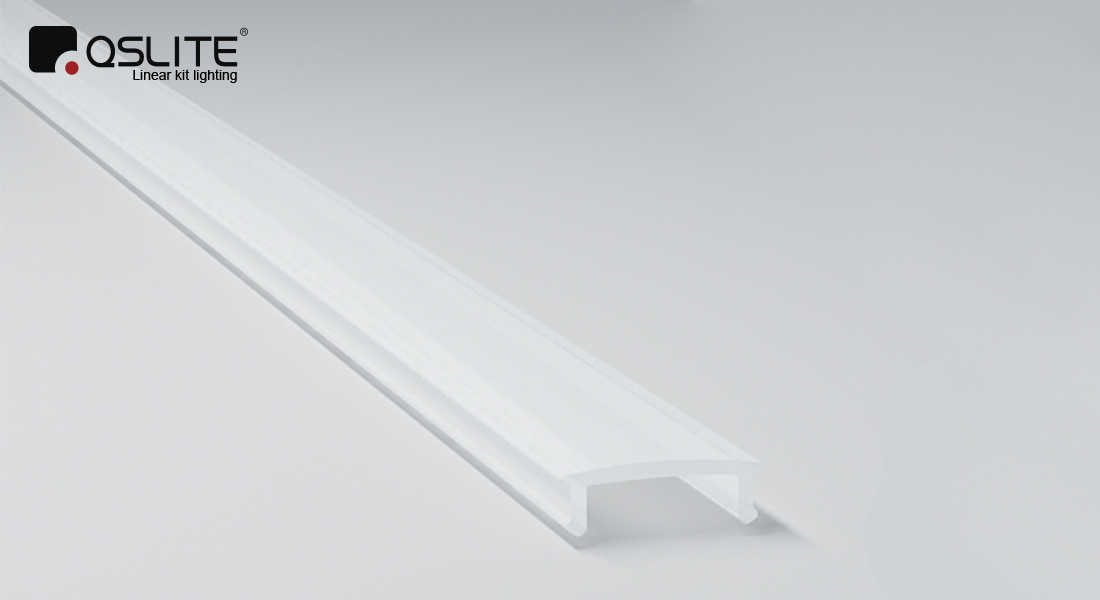

QSG-1707D PC Cover
QSG-1707D PC Cover
PC
1m-100m
Clear
PC
QSG-1707D PC Cover
QSG-1707D PC Cover
PC
1m-100m
Diffuser
PC
QSG-1707D PC Cover
QSG-1707D PC Cover
PC
1m-100m
White
PC
QSG-1707D PC Cover
QSG-1707D PC Cover
PC
1m-100m
Black
PC
QSG-14019 ALU
QSG-14019 ALU
Plastic
19.3*19.3mm
Silver
Plastic
End-caps
End-caps
Plastic
19.3*19.3mm
White
Plastic
End-caps
End-caps
Plastic
19.3*19.3mm
Black
Plastic
QSG-14019 ALU
QSG-14019 ALU
6063-T5
140*19.3mm
Rose gold
Anodic oxidation
