QSG-1761
QSG-1761 QSG-1761 QSG-1761 QSG-1761 QSG-1761

QSG-1761

Color
Silver RAL9006
Black RAL9005
White RAL9016
BronzeRAL1036
Rose gold RAL3015
Installation
recessed mounting
Wall mounting-anti-glare

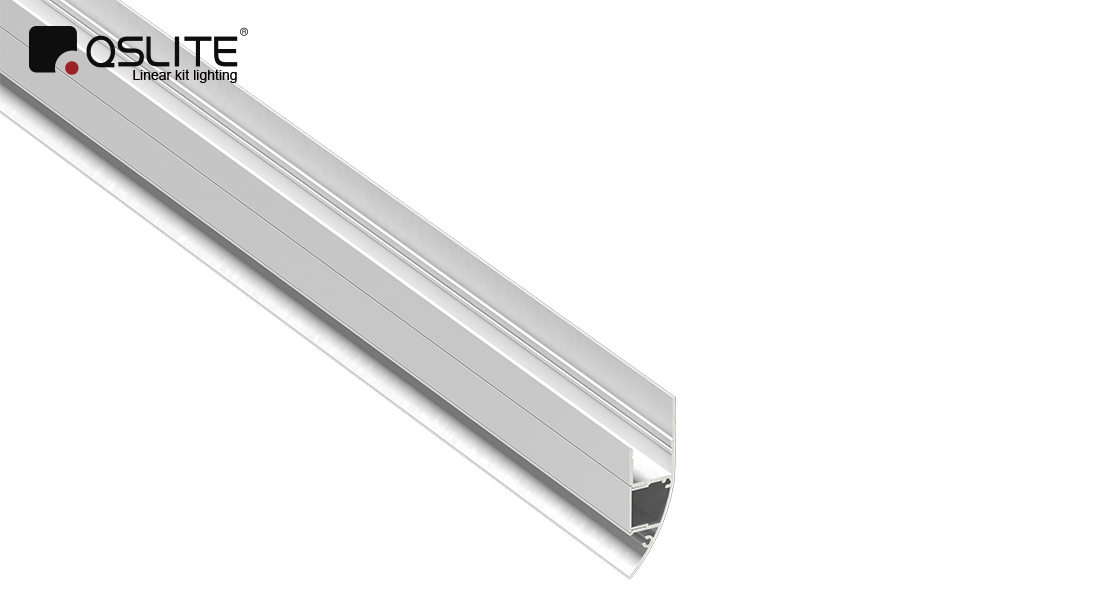

Product Description



material:6063-T5
craft:heat extrusion
length:1/2/3Mte Can be carve up according to demand
specifications type or composition(Aluminium / led accessorie)

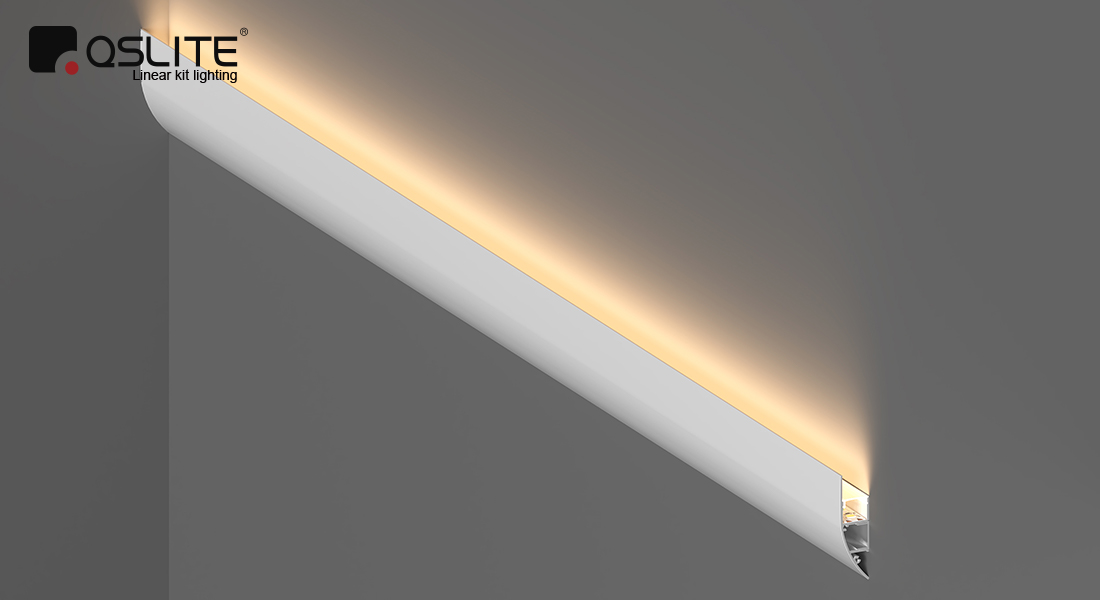

(The US series can be cleverly integrated into all corners of the home, whether it is the ceiling,  loor, ground

or staircase can be seen to emit uniform light, so that the space more layers.)



Power/W 1PCS10
Lumens/lm1000
CCT3500k-6500k
CRI>90
Electrical ClassClass I
Ingress Protection (IP Rating)IP 20
Lifetimehr50,000(hour
Housing MterialAluminum
Impact Resistance (IK Rating)IK06
Glow wire test(℃)750℃
Operating Temp.(℃)20℃~-45℃
Storae Temp.(℃)20℃~-65℃




Accessories
#
Name
Material
Size
Color
Surface Treatment
QSG-1761 ALU
QSG-1761 ALU
6063-T5

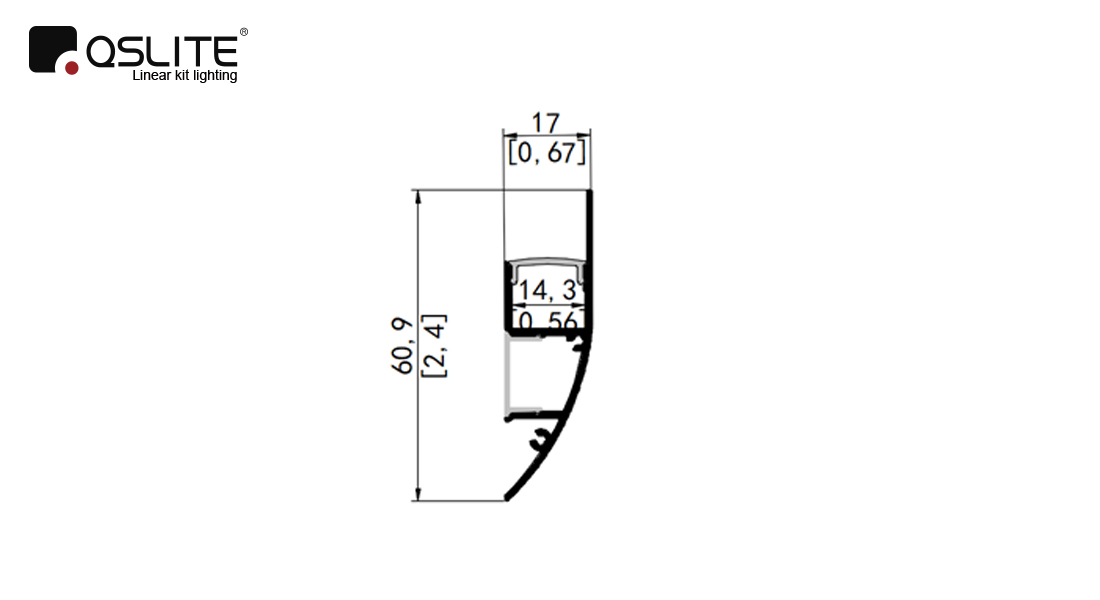

60.9*17mm
Black
Oxidation treatment
QSG-1761 ALU
QSG-1761 ALU
6063-T5
60.9*17mm
Rose gold
Anodic oxidation
QSG-1761 ALU
QSG-1761 ALU
6063-T5
60.9*17mm
Silver
Oxidation treatment
QSG-1761 ALU
QSG-1761 ALU
6063-T5
60.9*17mm
Bronze-colored
Anodic oxidation
QSG-1761 ALU
QSG-1761 ALU
6063-T5
60.9*17mm
White
Oxidation treatment
QSG-1707D PC Cover
QSG-1707D PC Cover
PC
1m-100m
Black
PC
QSG-1707D PC Cover
QSG-1707D PC Cover
PC
1m-100m
White
PC
QSG-1707D PC Cover
QSG-1707D PC Cover
PC
1m-100m
Clear
PC
QSG-1707D PC Cover
QSG-1707D PC Cover
PC
1m-100m
Diffuser
PC

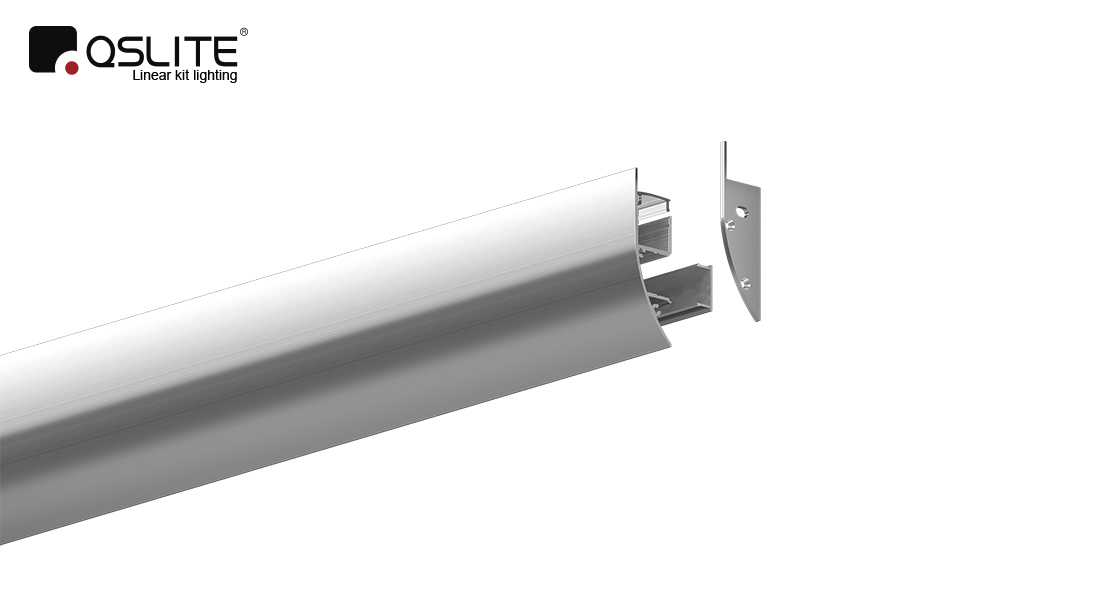

End-caps
End-caps
Plastic
60.93*17mm
White
Plastic
End-caps
End-caps
Plastic
60.93*17mm
Silver
Plastic
End-caps
End-caps
Plastic
60.93*17mm
Black
Plastic
